Home Assistant -
HACS Kleenex Pollen Radar

Here you find Home Assistant (lovelace) dashboard examples related to the custom HACS integration Kleenex Pollen Radar which you can easily add to your own dashboard.

This integration shows Pollen information for grass, trees and weeds.

It’s available for the countries: The Netherlands, France, Italy, the United Kingdom and the United States of America.
Check the git repository to find out all options: https://github.com/MarcoGos/kleenex_pollenradar

Alternative integration

If your country isn’t in the list, or you want to try another data provider, you can also look at the Google Pollen integration.

Compatibility

This documentation is based on Home Assistant version 2025.3.4 and integration 1.1.7

In the past, due to updates in HA and the integration, the presentations were broken.

UPDATE 3 - 30 March 2025: All dashboard presentations YAML and screenshots are updated and now aligned again.

UPDATE 2 - 24 March 2025: Since Home Assistant version 2025.3.0 the colored background with the level indicator circle is broken. If you rollback to version 2025.2.2 it works as expected. If you see the screenshot the <div class="icon-container" ..> is removed now. a href=”images_kleenex/ha_broken_update.png”> </a>

UPDATE 1 - 23 March 2025: Since version 1.1.3 released at 17 March 2025 the data structure is changed for the integration. I updated this manual, and it’s now compatible with version 1.1.6

Installation
Dashboard presentations
Credits

Installation

Here are the steps to install this HACS Kleenex Pollen Radar integration.

Use this button to add the Kleenex pollen radar / Scottex integration:
Click Add integration
Now you get one search result.
Select the Kleenex integration
Click on the detail page, in the right bottom corner on Download

Now is the integration added, but not yet installed.

Click this button to install the integration:
Select your country and press the Submit button.

Now you have these five new sensors.

Subtypes in attributes

Each sensor contains also in it’s attribute value extra information about different subtypes and a forecast for the upcoming days.
These subtypes are possible:

Trees
- Hazelaar (NL), Hazel (EN)
- Pijnboom (NL), Pine (EN)
- Populier (NL), Poplar (EN)
- Plataan (NL), Plane (EN)
- Cipres (NL), Cypress (EN)
- Els (NL), Els (EN)
- Iep (NL), Elm (EN)
- Berk (NL), Birch (EN)
- Eik (NL), Oak (EN)
Grass
- Poaceae (NL), Poaceae (EN)
Weeds
- Bijvoet (NL), Mugwort (EN)
- Ganzevoet (NL), Goosefoot (EN)
- Ambrosia (NL), Ambrosia (EN)
- Brandnetel (NL), Nettle (EN)

To see this subtype and forecast data use this button to go to the Developer tools and filter the entities on with the keyword kleenex.

Click on the image to see all the forecast and subtype details which are stored in the attribute data.

Dashboard presentations

I have different examples of how to present this data on your dashboard:

Default as list entities - no extra modules needed.
Mushroom template with bigger icons - extra mushroom modules required.
Tile card with level indicator - extra helpers needed to create. With default Dutch text.
- Same as previous but with extra clickable link to Kleenex website and labels
Sub types - two tree subtype examples.
Sub types forecast graph - trees forecast.
—
Alternative icons

If you want an alternative icon for weeds you can also use mdi:sprout or mdi:flower-pollen.

Default presentation

When the installation is complete, you get at least three entities which you can add to your dashboard.

This is a default presentation with the entities card.

default Kleenex presentation

# Sourcecode by vdbrink.github.io
# Entities Card Configuration
    type: entities
    entities:
      - sensor.kleenex_pollen_radar_huis_grass
      - sensor.kleenex_pollen_radar_huis_trees
      - sensor.kleenex_pollen_radar_huis_weeds

Mushroom

This presentation uses English levels and has bigger icons.
No need to create extra helper sensors.

This presentation required the HACS integration lovelace-mushroom to create this custom presentation.
Install the integration via this button:

> Click here to see the corresponding dashboard YAML code >>

```yaml # Sourcecode by vdbrink.github.io type: grid cards: - type: custom:mushroom-template-card primary: |- Weeds: {% set input_name = 'Ragweed' %} {% set details = state_attr('sensor.kleenex_pollen_radar_huis_weeds', 'details') %} {% set item = details | selectattr('name', 'eq', input_name) | first() %} {% set level = item.level | default('N/A') %} {% set color_map = {'none': 'green', 'low': 'green', 'moderate': 'orange', 'high': 'red','very high': 'maroon'} %} {{ level }} secondary: "{{ states('sensor.kleenex_pollen_radar_huis_weeds') }} ppm" icon: mdi:flower-pollen icon_color: |- {% set input_name = 'Ragweed' %} {% set details = state_attr('sensor.kleenex_pollen_radar_huis_weeds', 'details') %} {% set item = details | selectattr('name', 'eq', input_name) | first() %} {% set level = item.level | default('N/A') %} {% set color_map = {'none': 'green', 'low': 'green', 'moderate': 'orange', 'high': 'red', 'very high': 'maroon'} %} {% set level_color = color_map.get(level, 'gray') %} {{ level_color }} layout: vertical entity: sensor.kleenex_pollen_radar_huis_weeds multiline_secondary: false tap_action: action: more-info layout_options: grid_columns: 1 grid_rows: 2 card_mod: style: | ha-card { --icon-size: 60px; background-color: hsla(0, 0%, 0%, 0); } - type: custom:mushroom-template-card primary: >- Grass: {% set level = states('sensor.kleenex_pollen_radar_huis_grass')|int(0) %} {% if level == 0 %} None {% elif level <= 29 %} Low {% elif level <= 60 %} Moderate {% elif level <= 341 %} High {% else %} very High {% endif %} secondary: "{{ states('sensor.kleenex_pollen_radar_huis_grass') }} ppm" icon: mdi:grass icon_color: |- {% set level = states('sensor.kleenex_pollen_radar_huis_grass')|int(0) %} {% if level == 0 %} green {% elif level <= 95 %} yellow {% elif level <= 207 %} orange {% elif level <= 703 %} red {% else %} maroon {% endif %} layout: vertical entity: sensor.kleenex_pollen_radar_huis_grass multiline_secondary: false tap_action: action: more-info layout_options: grid_columns: 1 grid_rows: 2 card_mod: style: | ha-card { --icon-size: 60px; background-color: hsla(0, 0%, 0%, 0); } - type: custom:mushroom-template-card primary: >- Trees: {% set level = states('sensor.kleenex_pollen_radar_huis_trees')|int(0) %} {% if level == 0 %} None {% elif level <= 95 %} Low {% elif level <= 207 %} Moderate {% elif level <= 703 %} High {% else %} very High {% endif %} secondary: "{{ states('sensor.kleenex_pollen_radar_huis_trees') }} ppm" icon: mdi:tree icon_color: |- {% set level = states('sensor.kleenex_pollen_radar_huis_trees')|int(0) %} {% if level == 0 %} green {% elif level <= 95 %} yellow {% elif level <= 207 %} orange {% elif level <= 703 %} red {% else %} maroon {% endif %} layout: vertical entity: sensor.kleenex_pollen_radar_huis_trees multiline_secondary: false tap_action: action: more-info layout_options: grid_columns: 1 grid_rows: 2 card_mod: style: | ha-card { --icon-size: 60px; background-color: hsla(0, 0%, 0%, 0); } ```

Tile card with progress indicator

This presentation shows the entities with matching colors and a level border color.

The entities are clickable which show you the values over time:

kleenex popup

This presentation required the HACS module lovelace-card-mod to add custom CSS styling like the progress circle.
Install this integration via this button in your own HA instance:

Dashboard code

> Click here to see the corresponding dashboard YAML code >>

```yaml # Sourcecode by vdbrink.github.io # Horizontal Stack Card Configuration type: horizontal-stack cards: - entity: sensor.kleenex_pollen_radar_huis_weeds name: Onkruid type: tile vertical: true tap_action: action: more-info card_mod: style: | ha-tile-icon { {% set level = states('sensor.kleenex_pollen_radar_huis_weeds_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {% set circle = {'low':'25','moderate':'50','high':'75','very-high':'100'} %} {% set percentage = circle.get(level,'25') %} border-radius: 24px; background: radial-gradient(var(--card-background-color) 60%,transparent calc(60% + 1px)), conic-gradient({{level_color}} {{percentage}}% 0%, var(--card-background-color) 0% 100%); --tile-color: {{level_color}}; } - entity: sensor.kleenex_pollen_radar_huis_grass name: Gras type: tile vertical: true tap_action: action: more-info card_mod: style: | ha-tile-icon { {% set level = states('sensor.kleenex_pollen_radar_huis_grass_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {% set circle = {'low':'25','moderate':'50','high':'75','very-high':'100'} %} {% set percentage = circle.get(level,'25') %} border-radius: 24px; background: radial-gradient(var(--card-background-color) 60%,transparent calc(60% + 1px)), conic-gradient({{level_color}} {{percentage}}% 0%, var(--card-background-color) 0% 100%); --tile-color: {{level_color}}; } - entity: sensor.kleenex_pollen_radar_huis_trees name: Bomen type: tile vertical: true tap_action: action: more-info card_mod: style: | ha-tile-icon { {% set level = states('sensor.kleenex_pollen_radar_huis_trees_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {% set circle = {'low':'25','moderate':'50','high':'75','very-high':'100'} %} {% set percentage = circle.get(level,'25') %} border-radius: 24px; background: radial-gradient(var(--card-background-color) 60%,transparent calc(60% + 1px)), conic-gradient({{level_color}} {{percentage}}% 0%, var(--card-background-color) 0% 100%); --tile-color: {{level_color}}; } ```

Tile card: with an extra clickable link and labels

Show a clickable link to the Kleenex website, the entities with matching colors and colored labels, like this:

> Click here to see the corresponding dashboard YAML code >>

```yaml # Sourcecode by vdbrink.github.io # Entities Card Configuration type: vertical-stack cards: - type: heading heading: Pollen in de lucht heading_style: title card_mod: class: class-section-heading tap_action: action: url url_path: https://www.kleenex.nl/pollenradar - type: horizontal-stack cards: - entity: sensor.kleenex_pollen_radar_huis_weeds name: Onkruid type: tile vertical: true tap_action: action: more-info card_mod: style: | ha-tile-icon { {% set level = states('sensor.kleenex_pollen_radar_huis_weeds_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {% set circle = {'low':'25','moderate':'50','high':'75','very-high':'100'} %} {% set percentage = circle.get(level,'25') %} border-radius: 24px; background: radial-gradient(var(--card-background-color) 60%,transparent calc(60% + 1px)), conic-gradient({{level_color}} {{percentage}}% 0%, var(--card-background-color) 0% 100%); --tile-color: {{level_color}}; } - entity: sensor.kleenex_pollen_radar_huis_grass name: Gras type: tile vertical: true tap_action: action: more-info card_mod: style: | ha-tile-icon { {% set level = states('sensor.kleenex_pollen_radar_huis_grass_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {% set circle = {'low':'25','moderate':'50','high':'75','very-high':'100'} %} {% set percentage = circle.get(level,'25') %} border-radius: 24px; background: radial-gradient(var(--card-background-color) 60%,transparent calc(60% + 1px)), conic-gradient({{level_color}} {{percentage}}% 0%, var(--card-background-color) 0% 100%); --tile-color: {{level_color}}; } - entity: sensor.kleenex_pollen_radar_huis_trees name: Bomen type: tile vertical: true tap_action: action: more-info card_mod: style: | ha-tile-icon { {% set level = states('sensor.kleenex_pollen_radar_huis_trees_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {% set circle = {'low':'25','moderate':'50','high':'75','very-high':'100'} %} {% set percentage = circle.get(level,'25') %} border-radius: 24px; background: radial-gradient(var(--card-background-color) 60%,transparent calc(60% + 1px)), conic-gradient({{level_color}} {{percentage}}% 0%, var(--card-background-color) 0% 100%); --tile-color: {{level_color}}; } - type: horizontal-stack cards: - type: markdown entity: sensor.kleenex_pollen_radar_huis_weeds_level card_mod: style: | ha-card { background: rgb(128,193,177); color: {% set level = states('sensor.kleenex_pollen_radar_huis_weeds_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {{level_color}}; font-weight: 800; text-align: center; } content: | {% set level = states(config.entity) %} {% set text = {'low':'low','moderate':'moderate','high':'high','very-high':'very high'} %} {% set level_text = text.get(level,'onbekend') %} {{ level }} - type: markdown entity: sensor.kleenex_pollen_radar_huis_grass_level card_mod: style: | ha-card { background: rgb(128,193,177); color: {% set level = states('sensor.kleenex_pollen_radar_huis_grass_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {{level_color}}; font-weight: 800; text-align: center; } content: | {% set level = states(config.entity) %} {% set text = {'low':'laag','moderate':'gemiddeld','high':'hoog','very-high':'heel hoog'} %} {% set level_text = text.get(level,'onbekend') %} {{ level }} - type: markdown entity: sensor.kleenex_pollen_radar_huis_trees_level card_mod: style: | ha-card { background: rgb(128,193,177); color: {% set level = states('sensor.kleenex_pollen_radar_huis_trees_level') %} {% set color = {'low':'green','moderate':'orange','high':'red','very-high':'maroon'} %} {% set level_color = color.get(level,'gray') %} {{level_color}}; font-weight: 800; text-align: center; } content: | {% set level = states(config.entity) %} {% set text = {'low':'laag','moderate':'gemiddeld','high':'hoog','very-high':'heel hoog'} %} {% set level_text = text.get(level,'onbekend') %} {{ level }} ```

Subtypes values

I filtered from the tree attributes the values from the Hazelaar (Hazel) and Berk (Birch).

> Click here to see the corresponding dashboard YAML code >>

```yaml # Sourcecode by vdbrink.github.io # Entities Card Configuration type: horizontal-stack cards: - type: tile entity: sensor.kleenex_pollen_radar_huis_trees name: Hazelaar grid_options: columns: 3 rows: 2 vertical: true card_mod: style: ha-tile-icon: > {% set input_name = 'Hazelaar' %} {% set details = state_attr('sensor.kleenex_pollen_radar_huis_trees', 'details') %} {% set item = details | selectattr('name', 'eq', input_name) | first() %} {% set level = item.level | default('N/A') %} {% set color_map = {'low': 'green', 'moderate': 'orange', 'high': 'red', 'very high': 'maroon'} %} {% set level_color = color_map.get(level, 'gray') %} ha-state-icon { conic-gradient({{ level_color }} var(--card-background-color) 0% 100%); } ha-tile-icon { --tile-color: {{level_color}}; } ha-tile-info$: > {% set input_name = 'Hazelaar' %} {% set details = state_attr('sensor.kleenex_pollen_radar_huis_trees', 'details') %} {% set item = details | selectattr('name', 'eq', input_name) | first() %} .secondary state-display { display: none; } .secondary::after { content: "{{ item.value }} ppm"; display: block; text-align: center; } - type: tile entity: sensor.kleenex_pollen_radar_huis_trees name: Berk grid_options: columns: 3 rows: 2 vertical: true card_mod: style: ha-tile-icon: > {% set input_name = 'Berk' %} {% set details = state_attr('sensor.kleenex_pollen_radar_huis_trees', 'details') %} {% set item = details | selectattr('name', 'eq', input_name) | first() %} {% set level = item.level | default('N/A') %} {% set color_map = {'low': 'green', 'moderate': 'orange', 'high': 'red', 'very high': 'maroon'} %} {% set level_color = color_map.get(level, 'gray') %} ha-state-icon { conic-gradient({{ level_color }} var(--card-background-color) 0% 100%); } ha-tile-icon { --tile-color: {{level_color}}; } ha-tile-info$: > {% set input_name = 'Berk' %} {% set details = state_attr('sensor.kleenex_pollen_radar_huis_trees', 'details') %} {% set item = details | selectattr('name', 'eq', input_name) | first() %} .secondary state-display { display: none; } .secondary::after { content: "{{ item.value }} ppm"; display: block; text-align: center; } ```

Specific subtypes forecast

ApexCharts

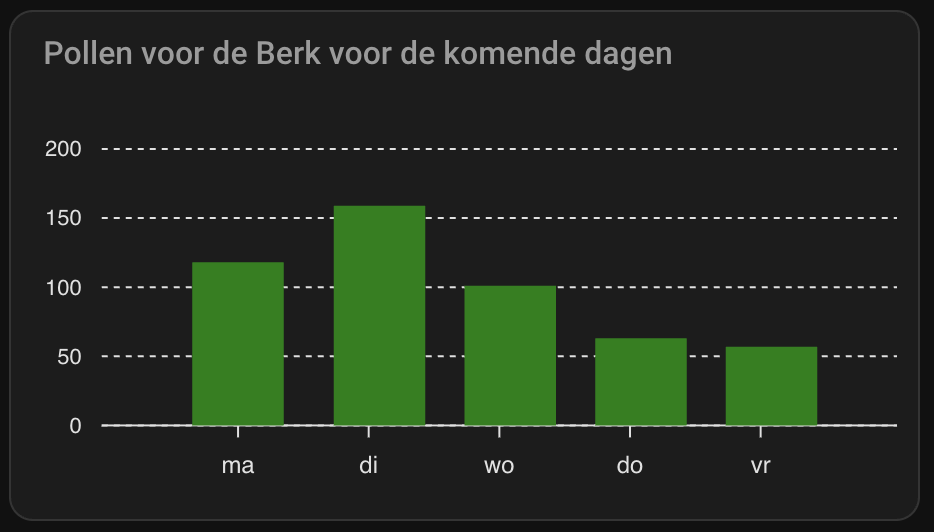

I created a bar graph with all tree data for the upcoming days. I used for this presentation the HACS ApexCharts Card integration.

Click this button to install the ApexCharts Card:

> Click here to see the corresponding dashboard YAML code >>

```yaml # Sourcecode by vdbrink.github.io # Entities Card Configuration type: custom:apexcharts-card now: show: true graph_span: 3d span: start: day offset: +2d all_series_config: show: legend_value: false series: - name: Hazelaar entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#1f77b4" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Hazelaar").value]); - name: Iep entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#ff7f0e" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Iep").value]); - name: Els entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#2ca02c" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Els").value]); - name: Populier entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#d62728" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Populier").value]); - name: Eik entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#9467bd" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Eik").value]); - name: Plataan entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#8c564b" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Plataan").value]); - name: Berk entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#e377c2" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Berk").value]); - name: Cipres entity: sensor.kleenex_pollen_radar_huis_trees type: column color: "#7f7f7f" data_generator: > return entity.attributes.forecast.map(d => [new Date(d.date).getTime(), d.details.find(t => t.name === "Cipres").value]); apex_config: chart: type: bar xaxis: type: datetime plotOptions: bar: columnWidth: 70% tooltip: enabled: true legend: labels: useSeriesColors: true ```

Markdown table

I created a table, based on a Markdown Card, with all tree data for today.

> Click here to see the corresponding dashboard YAML code >>

```yaml # Sourcecode by vdbrink.github.io # Markdown Card Configuration type: markdown content: >- {% set pollen = state_attr('sensor.kleenex_pollen_radar_huis_trees','details') %}{% for tree in pollen %} {% endfor %}

Tree	Value	Level
{{ tree.name }}	{{ tree.value }}	{{ tree.level }}

card_mod: style: | ha-card { font-size: 14px; th { text-align:left; } } ```

Good luck with the integration!

Any questions or suggestions?
Please let me know then I can improve this page for the next reader.

Credits

I got some ideas for the presentations from this HA forum: [Help request] Pollen sensor Dutch hooikoortsradar.nl
If you got any questions you can also ask them here.
