Automate Christmas decorations

Christmas banner

Introduction

Christmas tree

During the Christmas season, I have a lot of extra lights and other powered decorations in and around our house. Christmas trees, battery powered decorations and outside lights to cheer up the dark days.

It’s a lot of work to control them manually every day.
It’s also a waste of energy when no one sees it or it a clear day.
I’ve made my life easier by automating them all!

Now I also can control all my Christmas decorations from my phone in a Home Assistant dashboard.

random plugs

On this page, you can read how I did this to enjoy the Christmas season even more in a more relaxed way!

Quick links:

TIP: I used here Christmas as my example project, but these tips can be used for any kind of (battery/plug/outside) powered projects like Halloween automations.

NOTE: Affiliate links are used on this page.


Table of Contents

Christmas door light

Advantages

snow globe

There are a lot of advantages to automate all the lights and electric decorations. It’s not only about turning them on and off. It’s more than you can think of, like:

  • Don’t start every day turning on all the (battery powered) decorations one-by-one manually and at the end of the day turning them off again; Node-RED automation
    • No use of batteries, no useless power usage, more time for other things, more comfort
    • Only downside: No morning gymnastics to switch all the buttons in each corner
  • Come downstairs, and all the cozy lights are (just) on; Node-RED automation
    • More joy, quicker to the coffee!
  • Outside lights only on when it becomes dark; Node-RED automation
    • On a sunny day it doesn’t make sense to put also all outside lights on
  • Activate something (like playing Christmas music, or a dancing Santa) when someone shows up at your doorstep; Node-RED automation
    • A smile on their face
  • No lights on when there is nobody around for a while; Node-RED automation
    • No useless power usage, which saves money
  • No power cables to paper Christmas stars;
    • Freedom to place paper Christmas stars everywhere
  • Spend more time in bed and sleep like a baby; outside tree lights
    • More rest, more energy, less coffee
  • Fellow house members have no one to blame when the cozy lights are off because you were in a hurry to go to work;
    • More harmonie, for a better Christmas spirit
  • Less energy consumption, no batteries that need to be replaced which saves money. You still need to buy once the hardware to automate it, but in the end it earns itself back very fast;

These advantages must be enough excuses to automate these decorations. I even convinced myself again!


My old situation

Christmas light plug

Before I automated it, there were a lot of manual actions I had to deal with.

I, as a home automation geek, I was (previous year) looking for solutions and found them for all my decorations and lights! Read along how I did that.

> Click here to read the situation before I automated it >>

For example, my biggest Christmas tree lights have two light strings, and each has a power socket with a button which controls seven different flash modes. Each time you press the button, it switches from mode. And the normal required non-disco mode is the last mode! So I had to press every day that button seven times. And that for two strings of light. For only one tree. Those sockets are also out of sight under the tree, so you need to dive under the tree to reach them. And when you press one time too much, you can start all over again! Aargh!

Christmas light on battery

We also have a lot of battery powered decorations. I could use rechargeable batteries, but then I still have to turn all the decorations on and off manually every day to enjoy it. As a result, during the season they are only a few times on. And if you forgot one, it ends up with empty batteries after Santa was singing and dancing all night long.

Some of mine Christmas paper stars have a normal bulb and powered via the main power. This limits the places where to place them, they need to be closed to a wall socket and preferably hide the cable behind some curtains or closet to make it look nice. Other stars are battery powered but the button to turn them on is inside the star itself. Not easy to reach when it hangs on the ceiling!

The plug powered lights are easy to automate. Plug them into a good old-fashioned timers, everybody had already automated it in the previous century like in Home Alone! Every day on exact the same time.

Home Alone automatic timers

Two decades later, we can use “smarter” solutions. Like control them more dynamically based on the daylight level or motion and occupancy detection.


My smart hardware solutions

As mentioned, I have multiple types of Christmas decorations.
Which results at the end in five different type of power types to automate:

random plugs

In the next chapters I’ll describe how I automated each type.


Battery powered decorations

There are multiple smart hardware device combinations possible to change battery powered decorations, so you don’t need any battery at all anymore!

Here are some examples how-to accomplish this:

Example 1: battery-to-USB + smart USB adapter/switch + 5V-adapter

An example of a battery powered light is a garland with lights above the door.
I Automated it with a battery-to-usb set (a.k.a. battery eliminator/replacement), a smart usb adapter/switch and a 5V-adapter. This smart (Zigbee or Wifi) USB-adapter/switch can be remote controlled and each port can be activated individually.

battery to usb   Zigbee USB adapter switch   5V USB power adapter

This original battery-powered garland is now powered via the main power and controlled automatically.
door deco light string

These battery-powered light string is now powered via the main power and controlled automatically.
Christmas light balls string

Example 2: battery-to-plug + smart socket

Another example is a battery powered light in a bottle.

I use for this a battery-to-plug set and a smart socket. Place the dummy batteries in the original battery case and connect the power adapter to the smart socket to control is via an automation.

battery to plug   Zigbee smart EU socket
bottle with lights battery powered decoration

Example 3: battery-to-USB + USB hub + smart socket

If you have multiple battery power devices close to each other, and you want to automate them the same way, you can also use an active powered USB-hub.
This hub can be powered with a smart socket to control all the connected devices at once.

USB hub   Zigbee smart EU socket battery powered deco with USB hub

Hardware suggestions

As you could read, there are multiple combinations possible to control battery powered devices.
It really depends on how many devices you want to control at once and how close they are to each other, which is the best combination in your case.


Infrared lights

There are these days different kinds of infrared controlled device available like LEDs, fake candles or fake tea lights.

I had before Christmas paper stars that contain a regular light bulb. This reduces the positions where I could place them, they must be in reach of a power socket and somewhere where I could keep the power cable out of sight, guide them behind a curtain or so.

paper stars

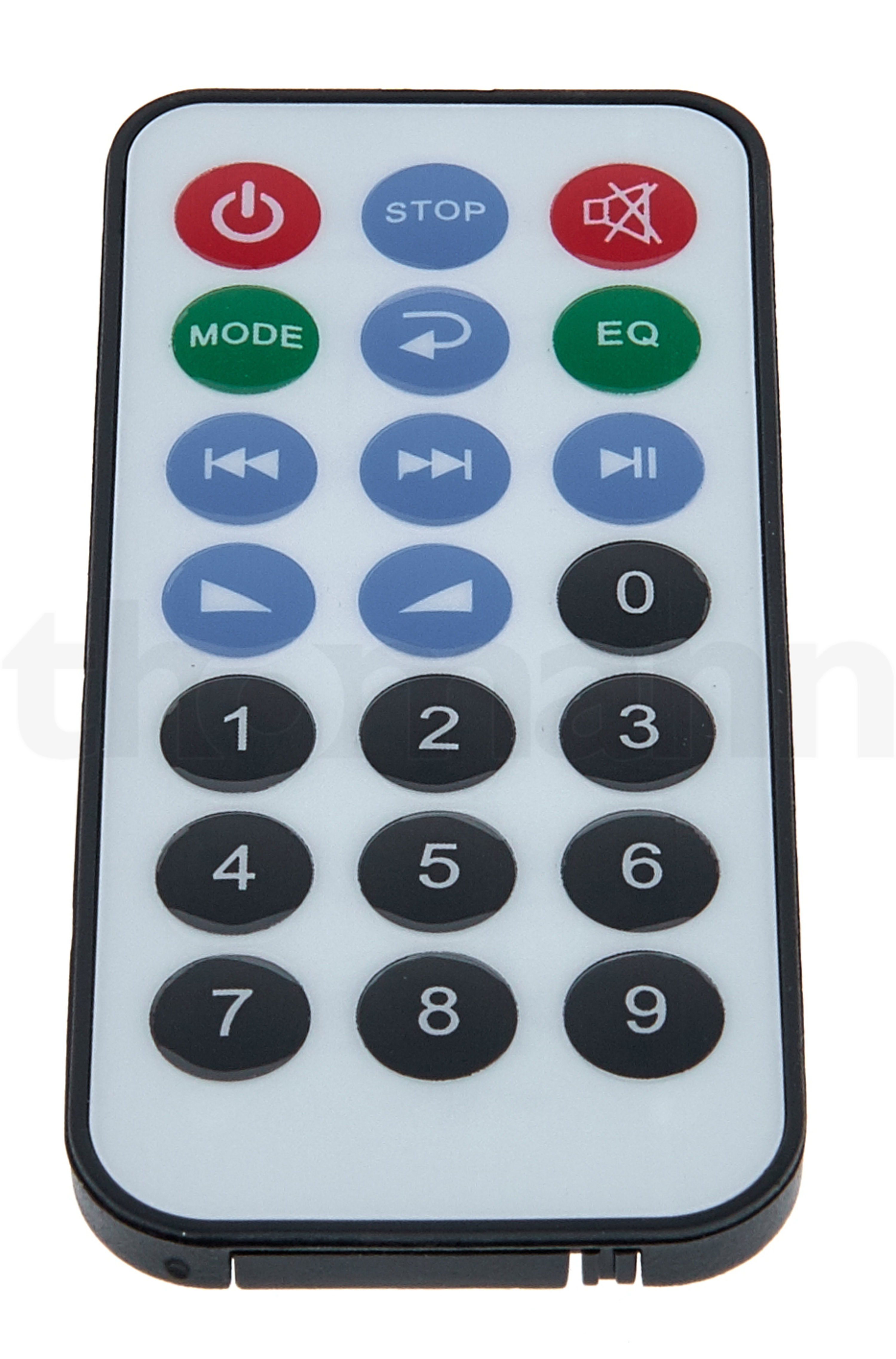

I solved this by using battery powered LED lights, which are controllable via an infrared remote. I used a Zigbee programmable infrared receiver and transmitter which can learn from the original remote.
This transmitter is a Wifi or Zigbee, battery powered, device that can be placed in the sight of multiple infrared devices.
I have it at a distance of five meters, and still it works great as long as the star is made of thin carton/paper otherwise the signal can’t get through the paper to reach the LED.

The programmable infrared remote

I used myself the Zigbee Moes UFO-R11 | , (there are also wifi models) a battery powered (wireless) programmable infrared receiver and transmitter to replace the original LED light remote. This device can store multiple different signals. Also the original remote can be used to control them!

Check my dedicated page about this Zigbee infrared transmitter / receiver for more information on how to program and use this device to replace and automate the original remote. Also, how to send infrared event signals from the Home Assistant dashboard.

Now you can automate these devices also!

Used hardware


Christmas tree lights

My Christmas tree has a specific EU outlet plug with the output of 31V and 3.6W. But when I was looking at AliExpress, I found this exact same plug but without a power button and without switching the disco modes, just always on.

christmas light adapter christmas light adapter

Christmas light string plug 31V/3.6W

Christmas tree

If you also have a plug with a button, you can always try to find a similar plug without a button.
Please, let me know if you use another one which fits for your light string.

Or if your familiar with soldering and electronics, you can modify the current button and make it always on, but only advised for professionals!!


Decorations powered with a power plug


Outdoor lights

I have in my garden several waterproof power sockets. Here I use outdoor water-resistant Zigbee power sockets to automate the outdoor decorations and lights.
In the front yard I put the light string wire through the mailbox to plug it inside.

outside tree lights   Front door lights
The number of these socket models are limited. If you have a suggestion for a Zigbee outdoor socket, please let me know!

Automations

I use Node-RED myself to control all the decoration and light automations.
If you have such automations in Home Assistant I can add those here also if you share them.

Activate a light on motion detection


[{"id":"e4c9ffe6e9ebc89e","type":"mqtt in","z":"fc546c6ffaa0d24f","name":"","topic":"zigbee2mqtt/motion1","qos":"0","datatype":"json","broker":"7527d055.ed7e2","nl":false,"rap":false,"inputs":0,"x":130,"y":40,"wires":[["283a54355d600404"]]},{"id":"7527d055.ed7e2","type":"mqtt-broker","name":"","broker":"mosquitto","port":"1883","tls":"bbaa4676.58e4c8","clientid":"node-red-client","autoConnect":true,"usetls":false,"protocolVersion":"5","keepalive":"60","cleansession":false,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"bbaa4676.58e4c8","type":"tls-config","name":"","cert":"","key":"","ca":"","certname":"m2mqtt_srv.crt","keyname":"m2mqtt_srv.key","caname":"m2mqtt_ca.crt","servername":"","verifyservercert":false}]

Disable a socket after a period of inactivity


[{"id":"fc546c6ffaa0d24f","type":"tab","label":"Flow 3","disabled":false,"info":"","env":[]},{"id":"95857193e1d3014e","type":"mqtt out","z":"fc546c6ffaa0d24f","name":"plug1","topic":"zigbee2mqtt/plug1/set","qos":"0","retain":"false","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"7527d055.ed7e2","x":1110,"y":94,"wires":[]},{"id":"283a54355d600404","type":"switch","z":"fc546c6ffaa0d24f","name":"occupancy = true","property":"payload.occupancy","propertyType":"msg","rules":[{"t":"true"},{"t":"else"}],"checkall":"true","repair":false,"outputs":2,"x":350,"y":100,"wires":[["4bd8838f5b3148e6","9234488c505f1034"],["f02e50b55cb46eaa"]]},{"id":"e4c9ffe6e9ebc89e","type":"mqtt in","z":"fc546c6ffaa0d24f","name":"","topic":"zigbee2mqtt/motion1","qos":"0","datatype":"json","broker":"7527d055.ed7e2","nl":false,"rap":false,"inputs":0,"x":130,"y":100,"wires":[["283a54355d600404"]]},{"id":"32d13518d26f4f38","type":"template","z":"fc546c6ffaa0d24f","name":"OFF","field":"payload","fieldType":"msg","format":"handlebars","syntax":"mustache","template":"OFF","output":"str","x":770,"y":134,"wires":[["1b0aafefe85d17b3"]]},{"id":"1b0aafefe85d17b3","type":"rbe","z":"fc546c6ffaa0d24f","name":"","func":"rbe","gap":"","start":"","inout":"out","septopics":true,"property":"payload","x":970,"y":94,"wires":[["95857193e1d3014e"]]},{"id":"4bd8838f5b3148e6","type":"template","z":"fc546c6ffaa0d24f","name":"ON","field":"payload","fieldType":"msg","format":"handlebars","syntax":"mustache","template":"ON","output":"str","x":770,"y":94,"wires":[["1b0aafefe85d17b3"]]},{"id":"f02e50b55cb46eaa","type":"delay","z":"fc546c6ffaa0d24f","name":"","pauseType":"delay","timeout":"30","timeoutUnits":"seconds","rate":"1","nbRateUnits":"1","rateUnits":"second","randomFirst":"1","randomLast":"5","randomUnits":"seconds","drop":false,"allowrate":false,"outputs":1,"x":640,"y":134,"wires":[["32d13518d26f4f38"]]},{"id":"9234488c505f1034","type":"change","z":"fc546c6ffaa0d24f","name":"reset","rules":[{"t":"set","p":"reset","pt":"msg","to":"1","tot":"num"}],"action":"","property":"","from":"","to":"","reg":false,"x":510,"y":60,"wires":[["f02e50b55cb46eaa"]]},{"id":"17481e8d3a375fed","type":"comment","z":"fc546c6ffaa0d24f","name":"vdbrink.github.io","info":"","x":120,"y":40,"wires":[]},{"id":"7527d055.ed7e2","type":"mqtt-broker","name":"","broker":"mosquitto","port":"1883","tls":"bbaa4676.58e4c8","clientid":"node-red-client","autoConnect":true,"usetls":false,"protocolVersion":"5","keepalive":"60","cleansession":false,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"bbaa4676.58e4c8","type":"tls-config","name":"","cert":"","key":"","ca":"","certname":"m2mqtt_srv.crt","keyname":"m2mqtt_srv.key","caname":"m2mqtt_ca.crt","servername":"","verifyservercert":false}]

Activate a socket based on outside lux


[{"id":"fc546c6ffaa0d24f","type":"tab","label":"Flow 3","disabled":false,"info":"","env":[]},{"id":"95857193e1d3014e","type":"mqtt out","z":"fc546c6ffaa0d24f","name":"plug1","topic":"zigbee2mqtt/plug1/set","qos":"0","retain":"false","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"7527d055.ed7e2","x":890,"y":100,"wires":[]},{"id":"17481e8d3a375fed","type":"comment","z":"fc546c6ffaa0d24f","name":"vdbrink.github.io","info":"","x":120,"y":40,"wires":[]},{"id":"4887e36795501543","type":"mqtt in","z":"fc546c6ffaa0d24f","name":"","topic":"zigbee2mqtt/lux1","qos":"0","datatype":"json","broker":"7527d055.ed7e2","nl":false,"rap":false,"inputs":0,"x":120,"y":100,"wires":[["7e9d2015c86738a5"]]},{"id":"c3cfddf246fe13bb","type":"template","z":"fc546c6ffaa0d24f","name":"ON","field":"payload","fieldType":"msg","format":"handlebars","syntax":"mustache","template":"ON","output":"str","x":610,"y":80,"wires":[["e51d8f56add45b05"]]},{"id":"abd3f54563749818","type":"template","z":"fc546c6ffaa0d24f","name":"OFF","field":"payload","fieldType":"msg","format":"handlebars","syntax":"mustache","template":"OFF","output":"str","x":610,"y":120,"wires":[["e51d8f56add45b05"]]},{"id":"e51d8f56add45b05","type":"rbe","z":"fc546c6ffaa0d24f","name":"","func":"rbe","gap":"","start":"","inout":"out","septopics":true,"property":"payload","topi":"topic","x":750,"y":100,"wires":[["95857193e1d3014e","7f32ace694a0666d"]]},{"id":"afcd6d623fd01433","type":"falling-edge","z":"fc546c6ffaa0d24f","name":"160","threshold":"160","x":490,"y":80,"wires":[["c3cfddf246fe13bb"]]},{"id":"dde843e60d0762fe","type":"rising-edge","z":"fc546c6ffaa0d24f","name":"1000","threshold":"1000","x":490,"y":120,"wires":[["abd3f54563749818"]]},{"id":"7e9d2015c86738a5","type":"change","z":"fc546c6ffaa0d24f","name":"","rules":[{"t":"set","p":"payload","pt":"msg","to":"payload.illuminance_lux","tot":"msg"}],"action":"","property":"","from":"","to":"","reg":false,"x":320,"y":100,"wires":[["afcd6d623fd01433","dde843e60d0762fe"]]},{"id":"fe23de1883877205","type":"inject","z":"fc546c6ffaa0d24f","name":"800","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{ \"illuminance_lux\": 800}","payloadType":"json","x":110,"y":200,"wires":[["7e9d2015c86738a5"]]},{"id":"7f32ace694a0666d","type":"debug","z":"fc546c6ffaa0d24f","name":"debug 105","active":true,"tosidebar":true,"console":false,"tostatus":false,"complete":"false","statusVal":"","statusType":"auto","x":910,"y":60,"wires":[]},{"id":"30de2de1673e6490","type":"inject","z":"fc546c6ffaa0d24f","name":"100","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{ \"illuminance_lux\": 100}","payloadType":"json","x":110,"y":240,"wires":[["7e9d2015c86738a5"]]},{"id":"a995a4bfd8f4d4e7","type":"inject","z":"fc546c6ffaa0d24f","name":"1001","props":[{"p":"payload"},{"p":"topic","vt":"str"}],"repeat":"","crontab":"","once":false,"onceDelay":0.1,"topic":"","payload":"{ \"illuminance_lux\": 1001}","payloadType":"json","x":110,"y":160,"wires":[["7e9d2015c86738a5"]]},{"id":"7527d055.ed7e2","type":"mqtt-broker","name":"","broker":"mosquitto","port":"1883","tls":"bbaa4676.58e4c8","clientid":"node-red-client","autoConnect":true,"usetls":false,"protocolVersion":"5","keepalive":"60","cleansession":false,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"bbaa4676.58e4c8","type":"tls-config","name":"","cert":"","key":"","ca":"","certname":"m2mqtt_srv.crt","keyname":"m2mqtt_srv.key","caname":"m2mqtt_ca.crt","servername":"","verifyservercert":false}]

Activate a socket based on someone entering the house


[{"id":"fc546c6ffaa0d24f","type":"tab","label":"Flow 3","disabled":false,"info":"","env":[]},{"id":"95857193e1d3014e","type":"mqtt out","z":"fc546c6ffaa0d24f","name":"plug1","topic":"zigbee2mqtt/plug1/set","qos":"0","retain":"false","respTopic":"","contentType":"","userProps":"","correl":"","expiry":"","broker":"7527d055.ed7e2","x":730,"y":80,"wires":[]},{"id":"17481e8d3a375fed","type":"comment","z":"fc546c6ffaa0d24f","name":"vdbrink.github.io","info":"","x":120,"y":40,"wires":[]},{"id":"e51d8f56add45b05","type":"rbe","z":"fc546c6ffaa0d24f","name":"","func":"rbe","gap":"","start":"","inout":"out","septopics":true,"property":"payload","topi":"topic","x":590,"y":80,"wires":[["95857193e1d3014e"]]},{"id":"7aeac0d65eb31c24","type":"mqtt in","z":"fc546c6ffaa0d24f","name":"","topic":"frigate/camera_1/person/snapshot","qos":"2","datatype":"buffer","broker":"7527d055.ed7e2","nl":false,"rap":false,"rh":"2","inputs":0,"x":180,"y":80,"wires":[["3738a583e0135c76"]]},{"id":"3738a583e0135c76","type":"trigger","z":"fc546c6ffaa0d24f","name":"","op1":"ON","op2":"OFF","op1type":"str","op2type":"str","duration":"3","extend":true,"overrideDelay":false,"units":"min","reset":"","bytopic":"all","topic":"topic","outputs":1,"x":430,"y":80,"wires":[["e51d8f56add45b05"]]},{"id":"7527d055.ed7e2","type":"mqtt-broker","name":"","broker":"mosquitto","port":"1883","tls":"bbaa4676.58e4c8","clientid":"node-red-client","autoConnect":true,"usetls":false,"protocolVersion":"5","keepalive":"60","cleansession":false,"autoUnsubscribe":true,"birthTopic":"","birthQos":"0","birthPayload":"","birthMsg":{},"closeTopic":"","closePayload":"","closeMsg":{},"willTopic":"","willQos":"0","willPayload":"","willMsg":{},"userProps":"","sessionExpiry":""},{"id":"bbaa4676.58e4c8","type":"tls-config","name":"","cert":"","key":"","ca":"","certname":"m2mqtt_srv.crt","keyname":"m2mqtt_srv.key","caname":"m2mqtt_ca.crt","servername":"","verifyservercert":false}]


Do you have other solutions?

Do you have other solutions or idea’s to automate your Christmas decorations? Please let me know!


I hope you enjoyed reading this blog post and found it useful! If you have any questions or comments, please post them below my social media posts, in the comment section.
